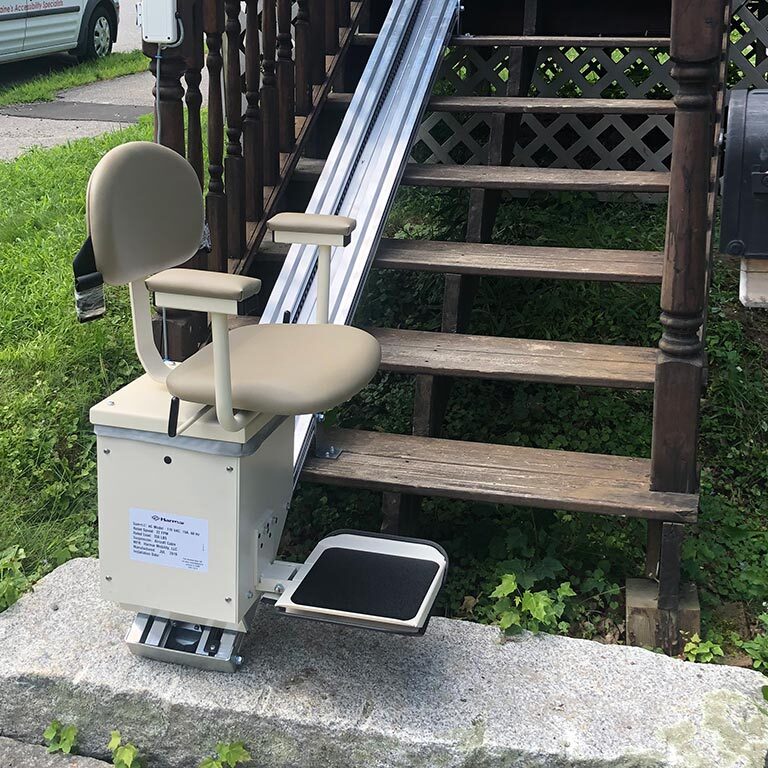

Harmar Summit AC Straight Outdoor Stair Lift
The Summit Outdoor Stair Lift is engineered with a durable extruded aluminum
track and marine-grade vinyl seating to handle rain, wind, snow, and temperatures
from 0 degrees to 125 degrees. Includes header, internal chassis, and large weatherproof cover for
protection of outside elements.
(Note: weight capacity is reduced to 250 pounds if the track length is 16 feet or longer.)
Features:
(Note: weight capacity is reduced to 250 pounds if the track length is 16 feet or longer.)
Outdoor Stair Lifts are not intended for use in snow and ice
Features:

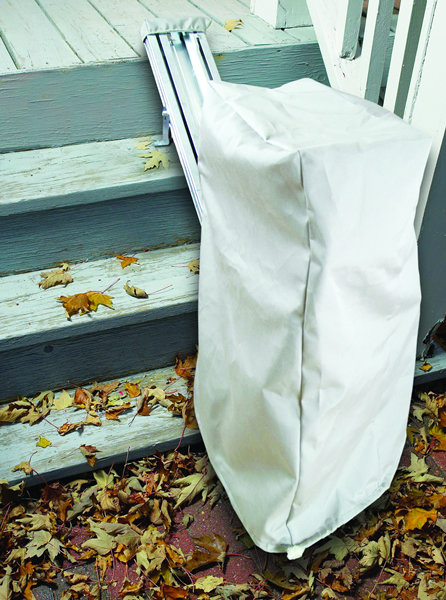

- Header cover, internal chassis cover and a large weatherproof cover included
- Rocker controls with constant-pressure functionality stop the lift immediately if the control is released
- Mounts to the stairs (not the wall) on either side of staircase
- Operates on standard 115V AC household current
- Extruded aluminum track is available in custom lengths
- Seat and footrest fold to save space
- Seat cushions in exterior marine grade vinyl
- Separate controls at top and bottom of stairs
Drive Type
Cable
Battery Powered
No
Self Installable
Yes
Basic Installation Included
No
Swivel Seat
Yes
Standard Capacity
350 lb
Max Track Length, Standard
15.5'
Constant Pressure Controls
Yes
Max Track Length, Optional
25'
Footrest Safety Sensor
Yes
Rail Angle, Min
30°
Rail Angle, Max
45°
Track Material
Aluminum
Seat Width, Min
17.5"
Seat Depth
14"
Flip-Up Seat
Yes
Unit Footprint, In Use
24.5"
Call Stations Included
Wired
Flip-Up Armrests
No
Unit Footprint, Parked
14"
Track Footprint
12"
Track Width
8"
Digital Diagnostics Display
No
Key Lock
No
